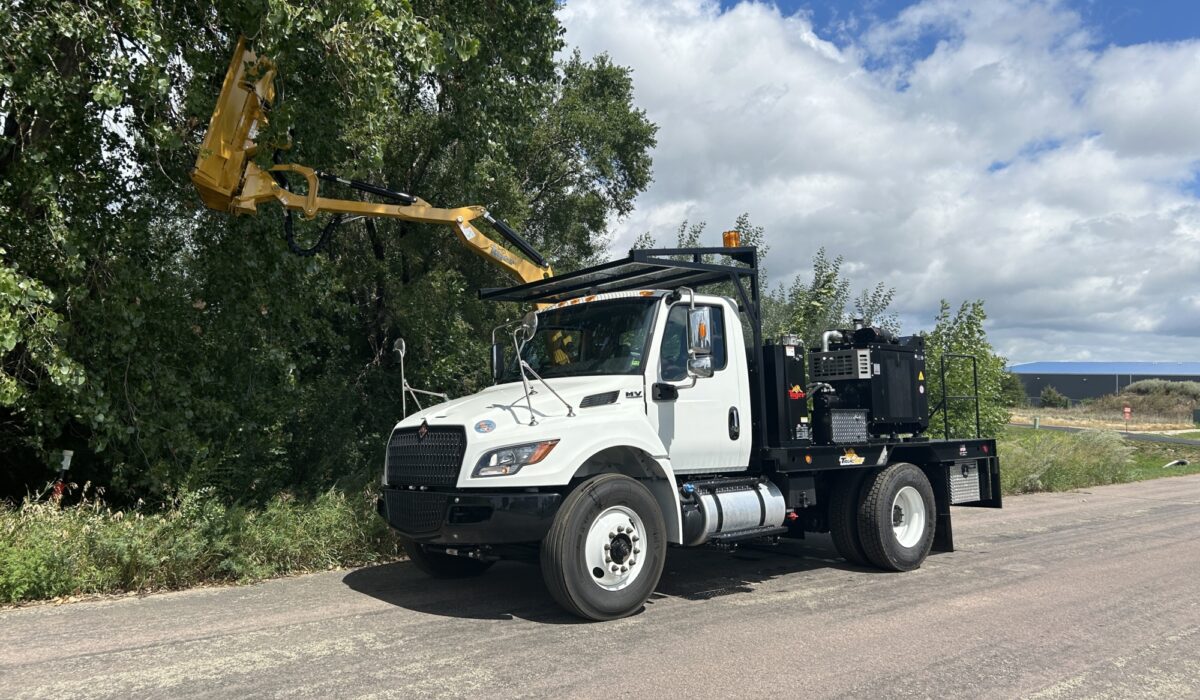

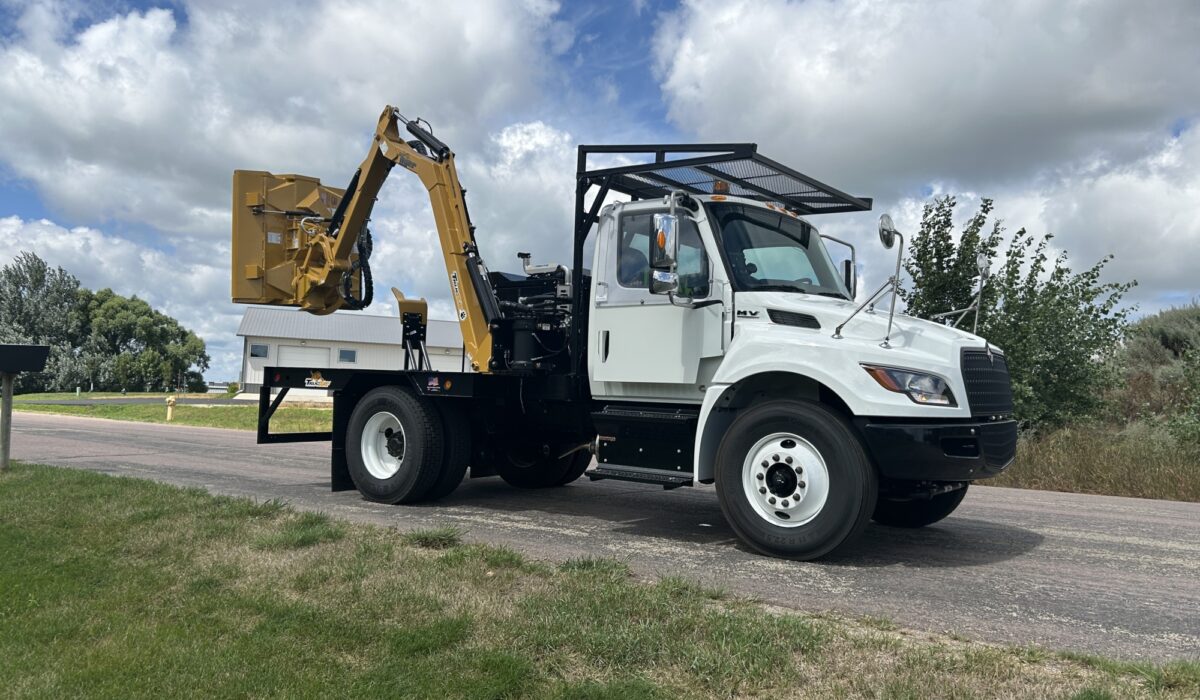

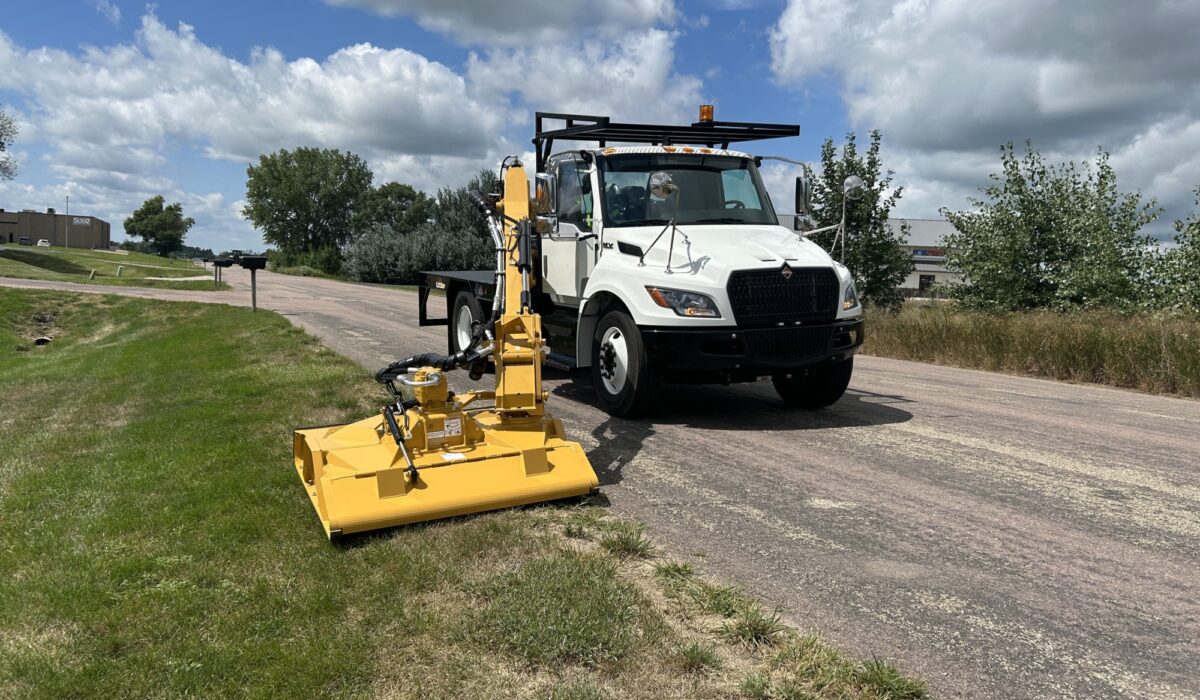

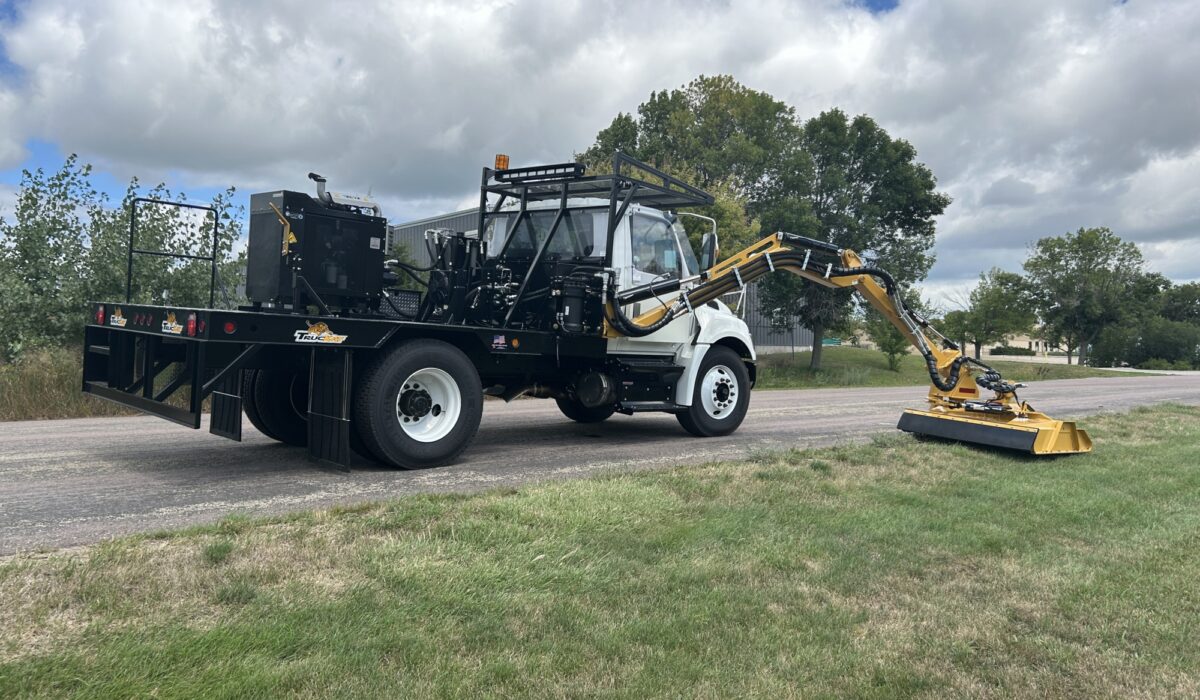

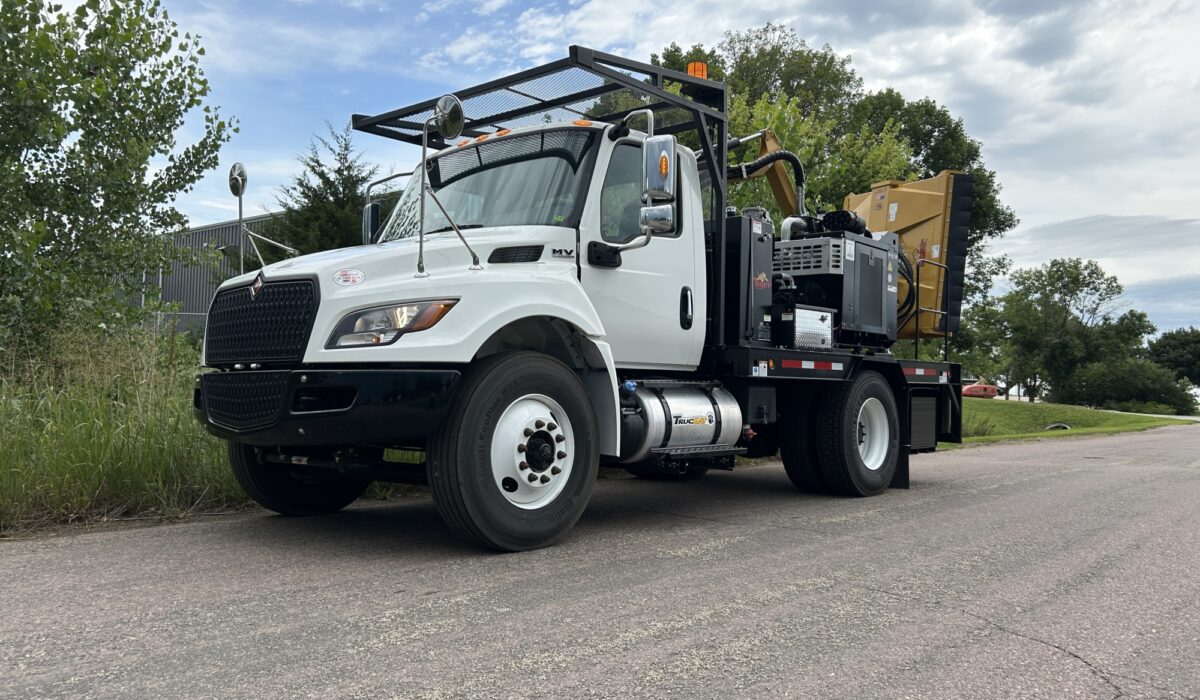

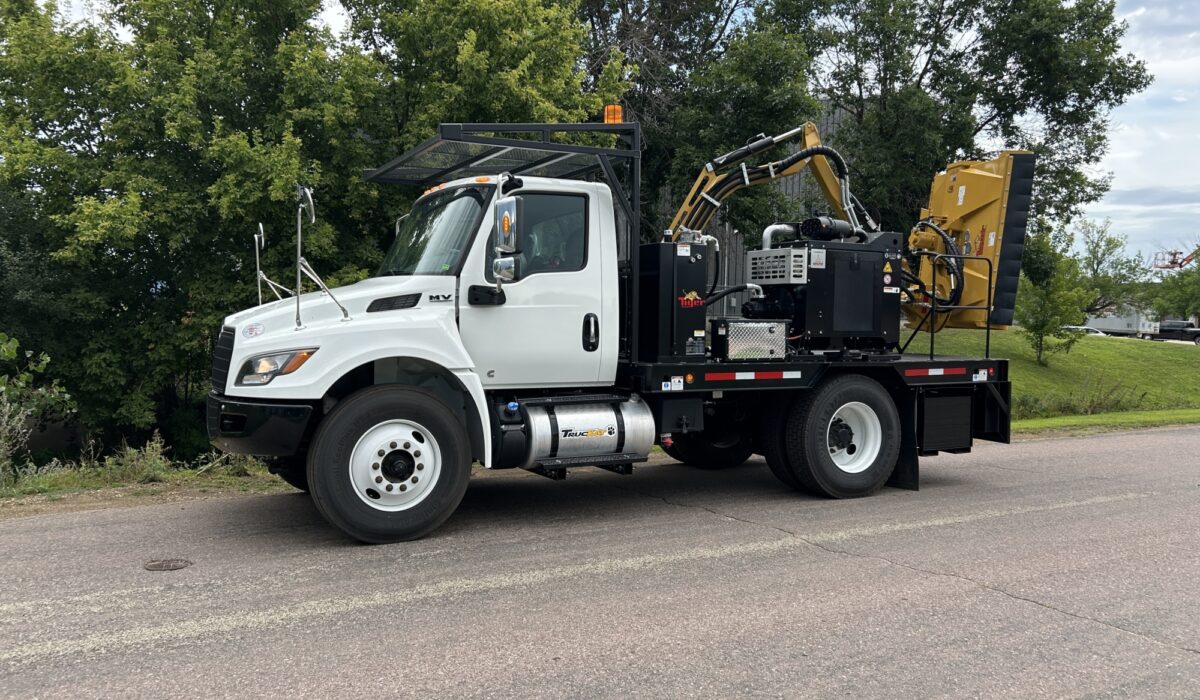

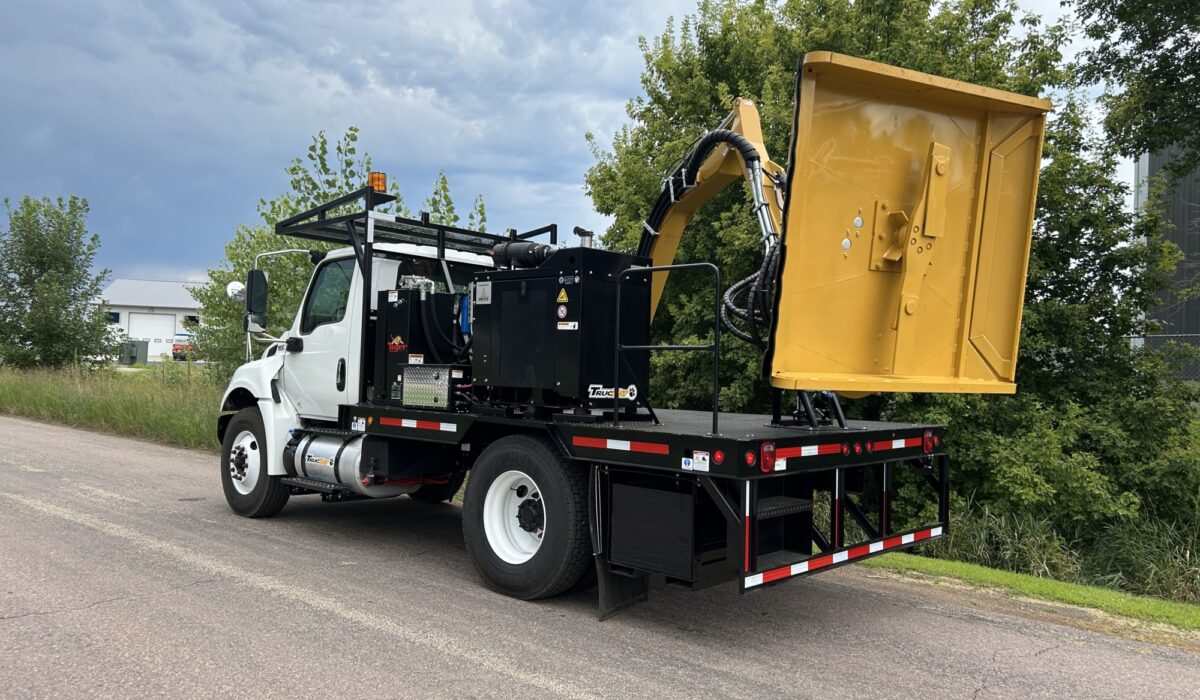

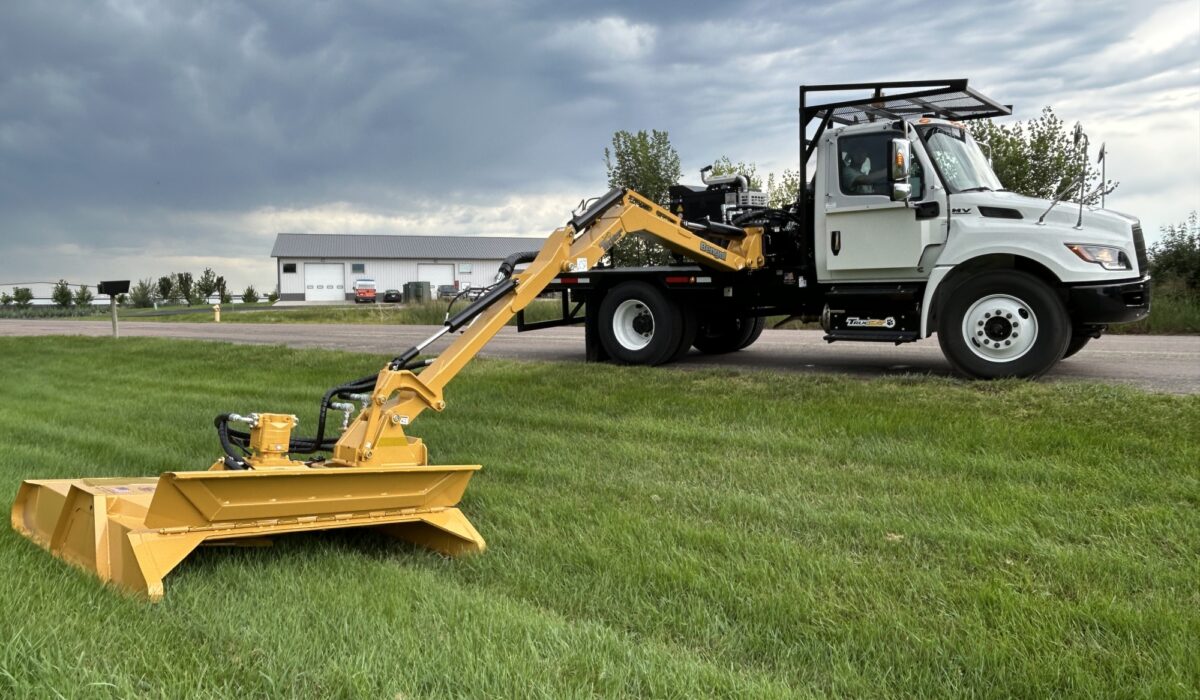

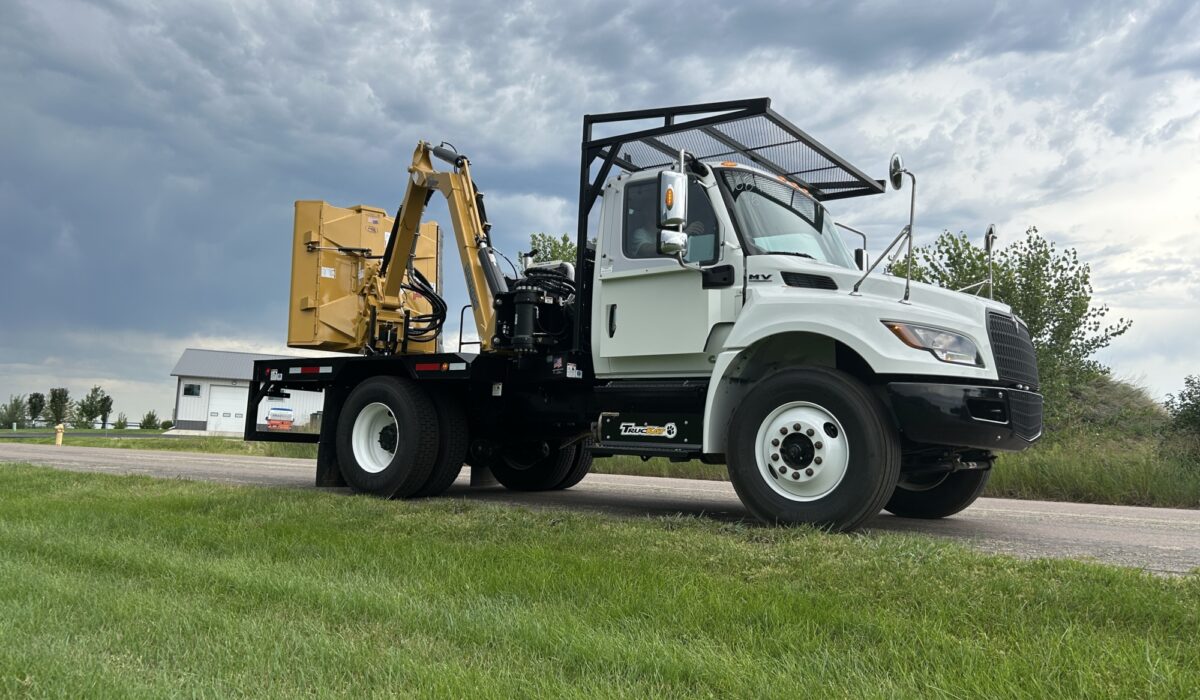

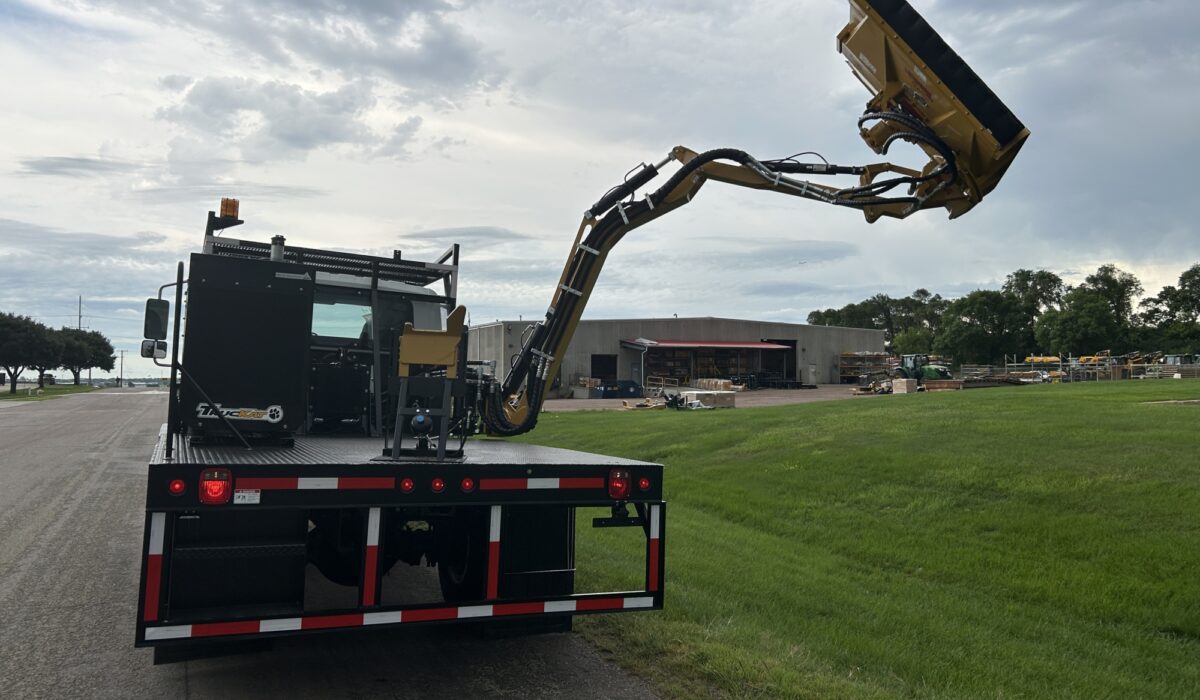

With the power of the Tiger TrucKat, you can get to the job site and back in record time. The Tiger TrucKat Boom Mower is crafted from premium materials and designed with ultimate freedom in mind. This means you can travel to and from job sites at standard road speeds and, once there, leverage the latest advancements in boom-mowing technology to handle even the toughest tasks effortlessly. Now available with 18’ and 22’ booms, offering greater reach and power.

Truckat Features

18’ Boom
  • Cutter reach up: 21' 4"
  • Cutter reach out: 23' 3”
  • Cutter reach down: 10' 10"
  • Cutter head: 50" Rotary
  • Transport width: 8' 6"
  • Electronic joystick controls
  • Hydraulic Actuator - swing boom 180 degrees

22’ Boom

  • Cutter reach up: 23’ 6”
  • Cutter reach out: 25' 7”
  • Cutter reach down: 12' 8"
  • Cutter head: 50" Rotary
  • Transport width: 8' 6"
  • Electronic joystick controls
  • Hydraulic Actuator - swing boom 180 degrees

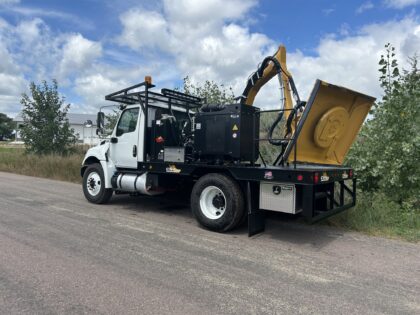

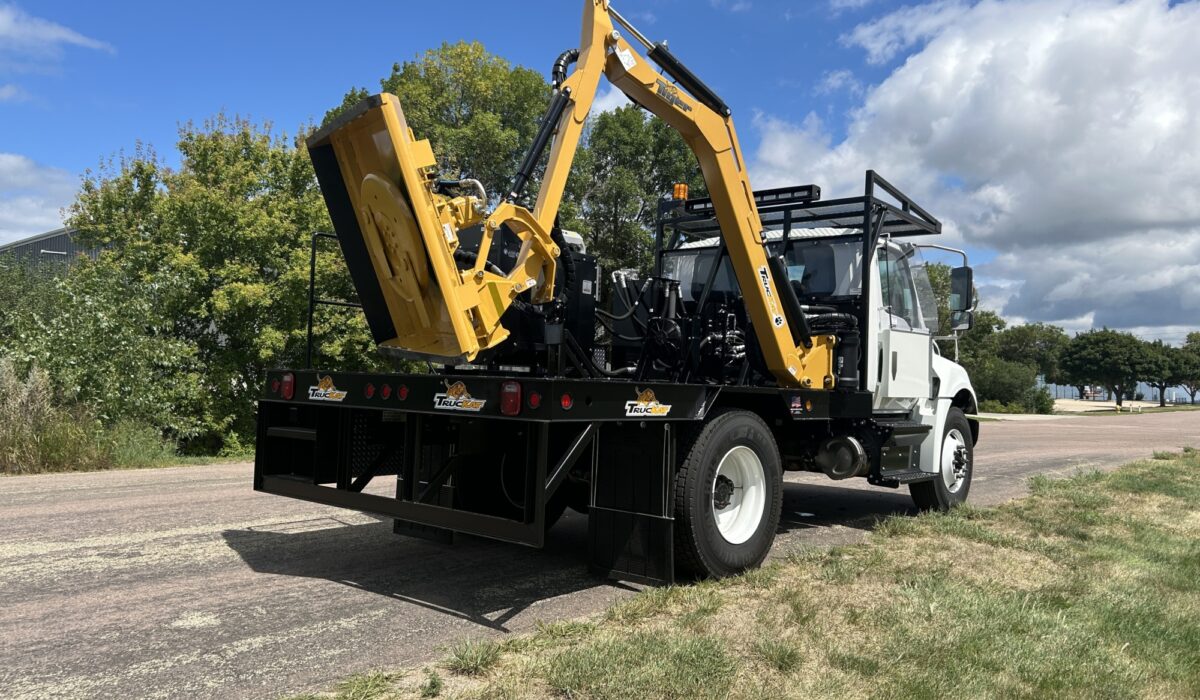

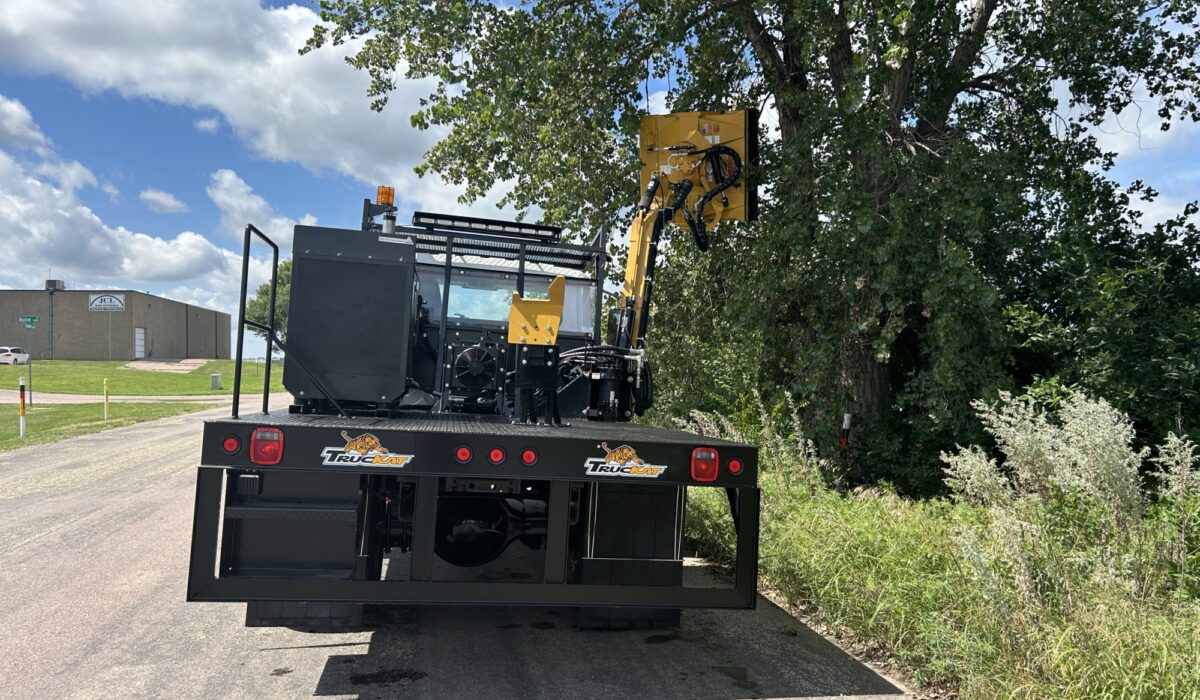

Exterior features:

  • Removable Bed w/Lifting Eyes & Quick Disconnects for Fuel & Electrical
  • Dedicated Jack Stand Pockets For Stowing Bed When Removed
  • Hydraulic Oil Reservoir w/Remote Drain
  • Heavy Duty AGM Battery
  • Deutz Aux Engine w/Remote Oil Drain & Direct Drive Parker Pump
  • Aux Engine Draws Fuel from Truck Fuel Tank - 100 miles before empty
  • Shortened Aux Fuel Pickup Tube
  • Counter Weight For Stability
  • Step & Hand Rail For Accessing Deck w/Diamond Tread Plate

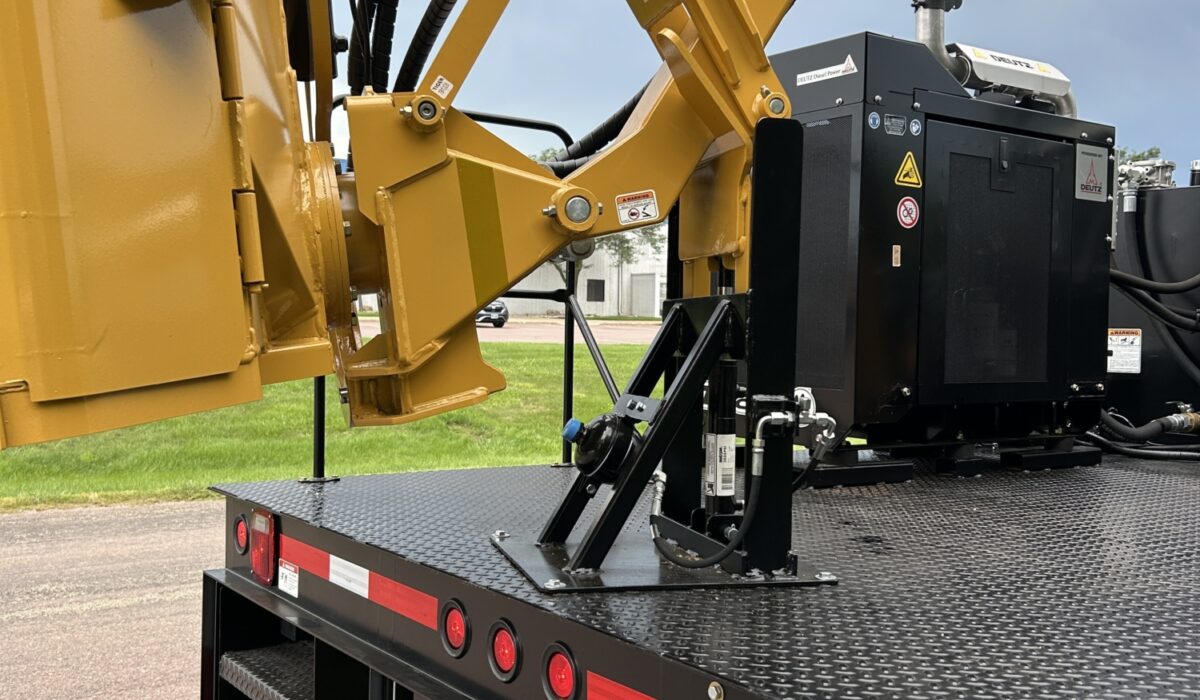

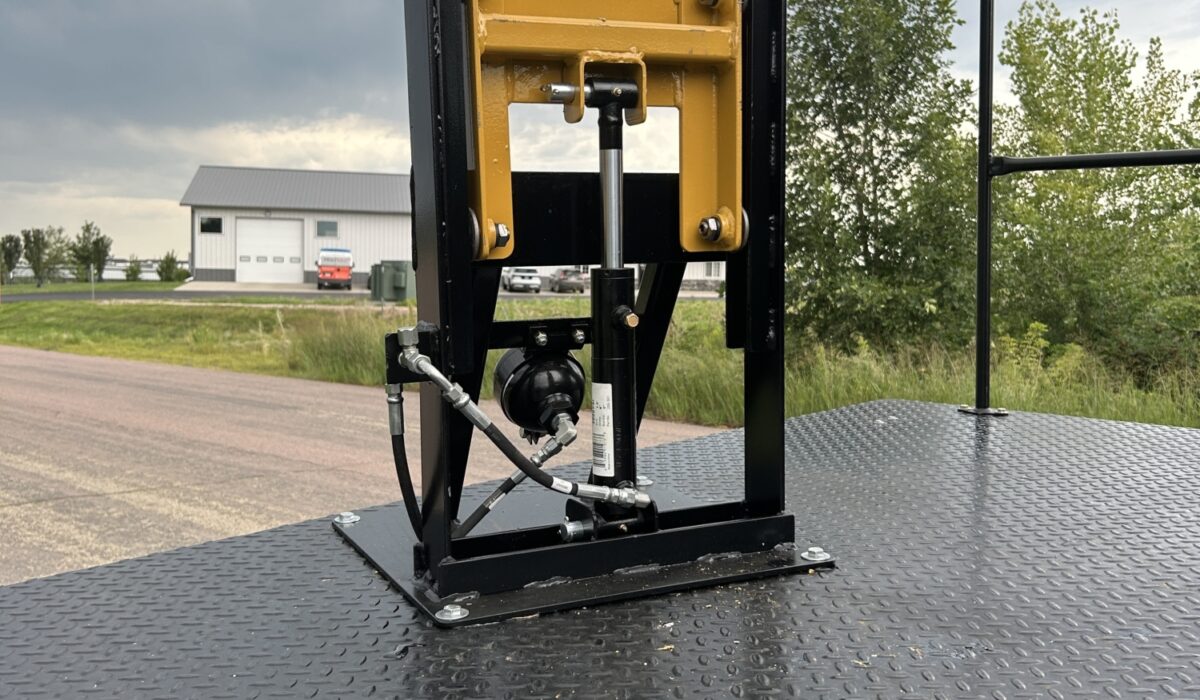

  • New Saddle Type Stow w/Cushioning For Rotary Heads
  • Dual Hydraulic Oil Filtration - Mower & Lift Valve

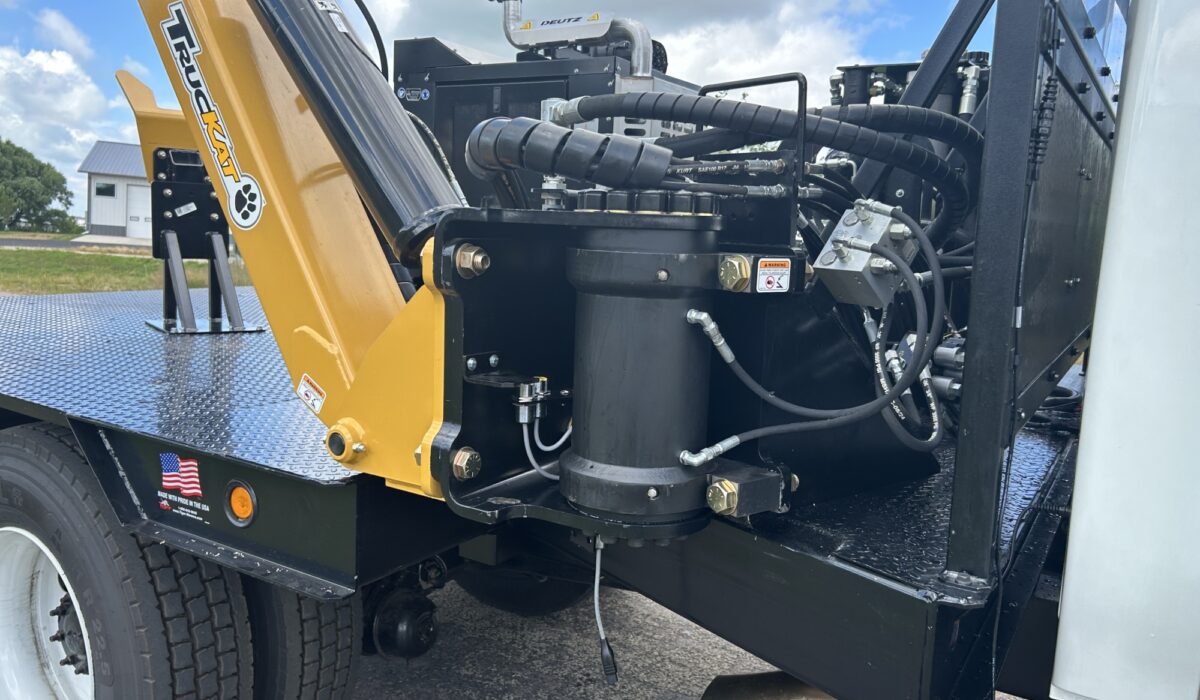

  • Hydraulic Actuator w/90˚ Live Swivels
  • BPS - Boom Positioning System

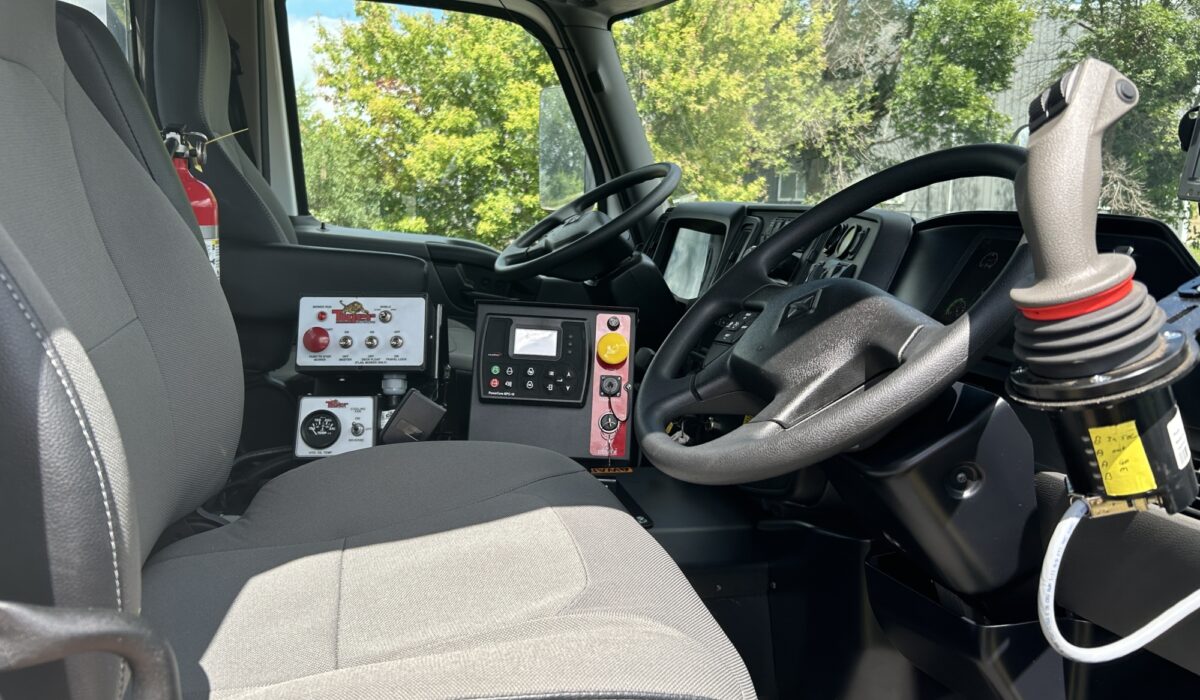

Interior features:

  • Custom Upfitter Switches - Master Power, Strobe Light & Light Bar
  • Dual Steer
  • Control Boxes - Bengal, Deutz, Hyd Oil Cooler
  • Strobe Pattern Selector Switch
  • Directional Light Bar Controller - if equipped
  • Fire Extinguisher


Safety features:

  • 7 second shut down safety stop
  • Mower E Stop (red) & Aux Engine E Stop (yellow)
  • Safety Door with Polycarbonate Sheeting
  • Stow Auto Stop
  • Mower safety start switch
  • Head Ache Rack - Rear & Overhead Protection w/Polycarbonate Sheeting
  • Back Up Alarm
  • Manual emergency over-ride
  • Diamond Tread Deck Plate - Slip Resistant
  • DOT Marker Lights & Reflective Tape
  • Optional Directional Light Bar w/Multiple Patterns

Accessories

  • 50" and 60" Rotary Head
  • 50" and 60" Swivel Rotary Head
  • 50" Flail Head
  • Mulcher Head
  • Snowblower
  • 60" Boom Sweeper
  • Fire Suppression

Options

  • Right side Camera with viewing monitor in the cab of the truck
